Save over $50 by purchasing it as a kit! Also includes joist hangers for the main beam of this house.
The 10ft Hexagon treehouse kit includes:
Qty 2 - 1.25” static brackets
Qty 8 - 3/8”x4” GRK rugged structural screws(for static brackets)
Qty 8 - 5/16”x6” GRK rugged structural screws(for the end of the boards sitting on the static brackets)
Qty 4 - LUS28-2Z Simpson Strongtie Joist Hangers
Qty 24 - #9 x 1-1/2" SD Connector Screws
Qty 16 - #9 x 2-1/2" SD Connector Screws
Qty 2 - 1.25”x9”-C1 tabs and nuts
Qty 4 - 1.25” single knee braces with galvanized bolts, washers, lock washers, and nuts
Qty 4 - 1.25”x12” galvanized lag bolts
Save over $50 by purchasing it as a kit!
The 12ft Hexagon treehouse kit includes:
Qty 2 - 1.25” static brackets
Qty 8 - 3/8”x4” GRK rugged structural screw(for static brackets)
Qty 8 - 5/16”x6” GRK rugged structural screws(for the end of the boards sitting on the static brackets)
Qty 4 - LUS28-2Z Simpson Strongtie Joist Hangers
Qty 24 - #9 x 1-1/2" SD Connector Screws
Qty 16 - #9 x 2-1/2" SD Connector Screws
Qty 2 - 1.25”x9”-C3 tabs and nuts
Qty 6 - 1.25” single knee braces with galvanized bolts, washers, lock washers, and nuts
Qty 6 - 1.25”x12” galvanized lag bolts
Save over $50 by purchasing it as a kit! Also includes joist hangers for the main beam of this house.
The 8ft Octagon treehouse kit includes:
Qty 2 - 1.25” static brackets
Qty 8 - 3/8”x4” GRK rugged structural screw(for static brackets)
Qty 8 - 5/16”x6” GRK rugged structural screws(for the end of the boards sitting on the static brackets)
Qty 2 - 1.25x15 lag bolts
Qty 4 - LUS26-2Z Simpson Strongite Joist Hangers
Qty 4 - #9 x 1-1/2" SD Connector Screws
Qty 4 - #9 x 2-1/2" SD Connector Screws
Qty 4 - 1.25” single knee braces with galvanized bolts, washers, lock washers, and nuts
Qty 4 - 1.25”x12” galvanized lag bolts
Save over $50 by purchasing it as a kit! Also includes joist hangers for the main beams of this platform.
The 10ft Octagon treehouse kit includes:
Qty 2 - 1.25” static brackets
Qty 8 - 3/8”x4” GRK rugged structural screws(for static brackets)
Qty 8 - 5/16”x6” GRK rugged structural screws(for the end of the boards sitting on the static brackets)
Qty 4 - LUS28-2Z Simpson Strongtie Joist Hangers
Qty 24 - #9 x 1-1/2" SD Connector Screws
Qty 16 - #9 x 2-1/2" SD Connector Screws
Qty 2 - 1.25”x9”-C1 tabs and nuts
Qty 4 - 1.25” single knee braces with galvanized bolts, washers, lock washers, and nuts
Qty 4 - 1.25”x12” galvanized lag bolts
Save over $50 by purchasing it as a kit!
The 12ft Octagon treehouse kit includes:
Qty 2 - 1.25” static brackets
Qty 8 - 3/8”x4” GRK rugged structural screw(for static brackets)
Qty 8 - 5/16”x6” GRK rugged structural screws(for the end of the boards sitting on the static brackets)
Qty 4 - LUS28-2Z Simpson Strongtie Joist Hangers
Qty 24 - #9 x 1-1/2" SD Connector Screws
Qty 16 - #9 x 2-1/2" SD Connector Screws
Qty 2 - 1.25”x9”-C3 TABs and nuts
Qty 6 - 1.25” single knee braces with galvanized bolts, washers, lock washers, and nuts
Qty 6 - 1.25”x12” galvanized lag bolts
Save over $65 by purchasing it as a kit!

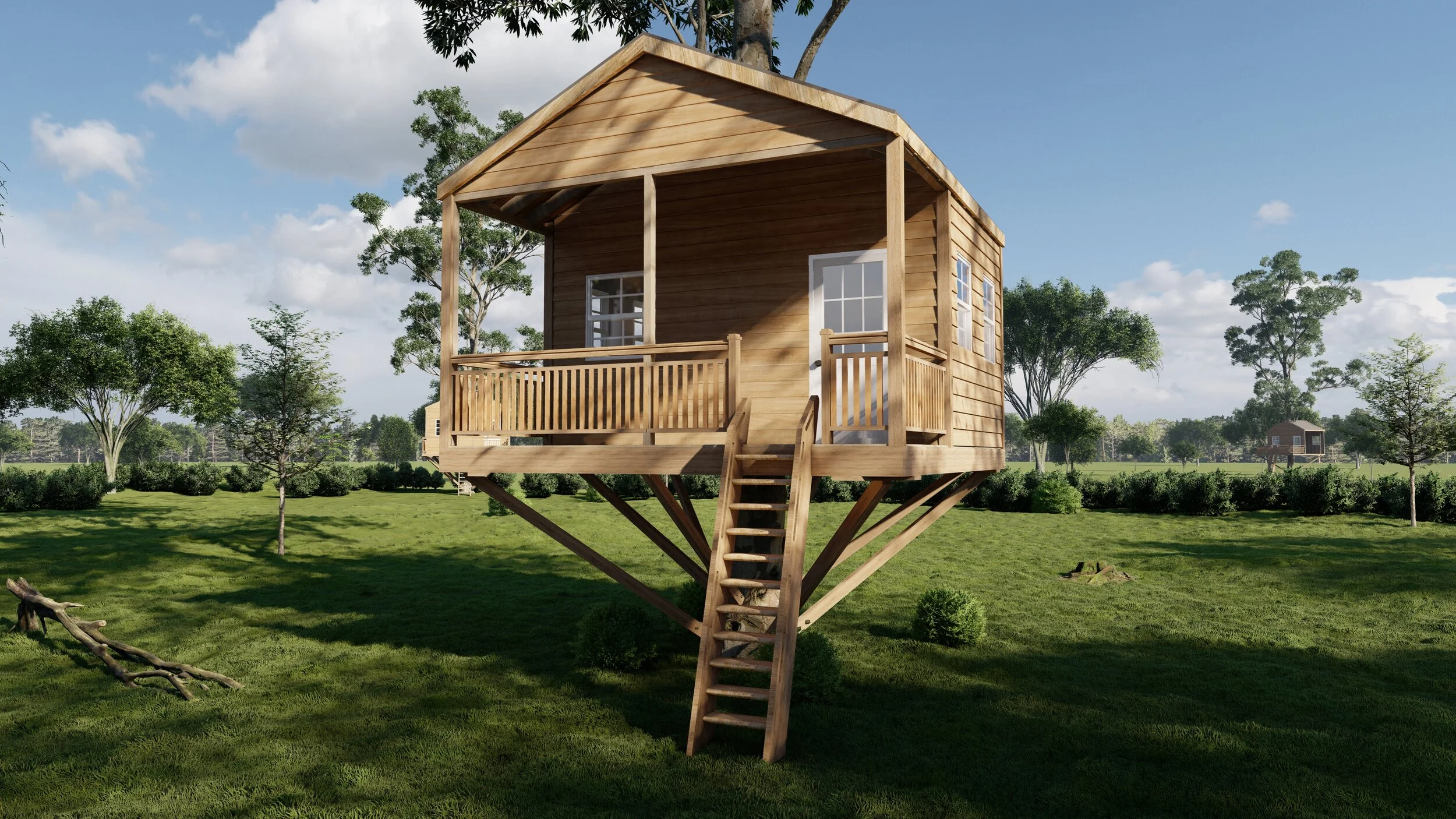

This 16ft Square treehouse kit is for building around a single tree.
Includes:
Qty 2 - 1.25” static brackets
Qty 8 - 3/8”x4” GRK rugged structural screw(for pipe brackets)
Qty 8 - 5/16”x6” GRK rugged structural screws(for the end of the boards sitting on the static brackets)
Qty 2 - 1.25”x9”-C3 TABs and nuts
Qty 4 - LUS28-2Z Simpson Strongtie Joist Hangers
Qty 24 - #9 x 1-1/2" SD Connector Screws(for joist hangers)
Qty 16 - #9 x 2-1/2" SD Connector Screws(for joist hangers)
Qty 8 - 1.25” single knee braces with galvanized bolts, washers, lock washers, and nuts
Qty 8 - 1.25”x12” galvanized lag bolts
Save over $50 by purchasing it as a kit!

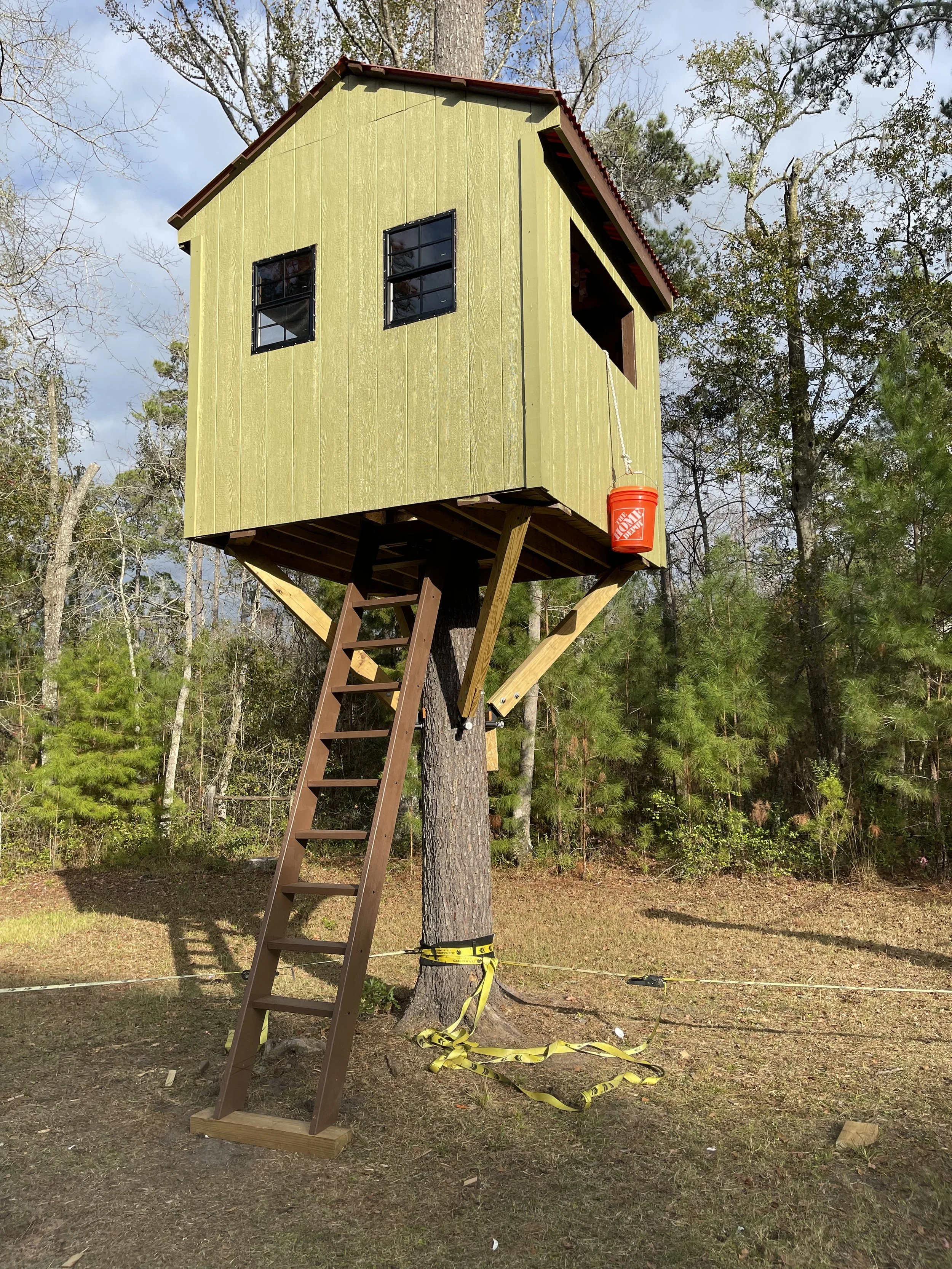

This 8ft Square treehouse kit is for building around a single tree.
Includes:
Qty 2 - 1.25” static brackets
Qty 8 - 3/8”x4” GRK rugged structural screw(for static brackets)
Qty 8 - 5/16”x6” GRK rugged structural screws(for the end of the boards sitting on the static brackets)
Qty 2 - 1.25x15 lag bolts
Qty 4 - LUS26-2Z Simpson Strongite Joist Hangers
Qty 16 - #9 x 1-1/2" SD Connector Screws
Qty 16 - #9 x 2-1/2" SD Connector Screws
Qty 4 - 1.25” single knee braces with galvanized bolts, washers, lock washers, and nuts
Qty 4 - 1.25”x12” galvanized lag bolts
Save over $40 by purchasing it as a kit!
This 10ft Square treehouse kit is for building around a single tree.
Includes:
Qty 2 - 1.25” static brackets
Qty 8 - 3/8”x4” GRK rugged structural screw(for static brackets)
Qty 8 - 5/16”x6” GRK rugged structural screws(for the end of the boards sitting on the static brackets)
Qty 2 - 1.25x9-C1 TABs and nuts
Qty 4 - LUS28-2Z Simpson Strongtie Joist Hangers
Qty 32 - #10 x 2-1/2" SD Connector Screws(for joist hangers)
Qty 4 - 1.25” single knee braces with galvanized bolts, washers, lock washers, and nuts
Qty 4 - 1.25”x12” galvanized lag bolts
Save over $60 by purchasing it as a kit!
This 12ft Square treehouse kit is for building around a single tree.
Includes:
Qty 2 - 1.25” pipe brackets
Qty 8 - 3/8”x4” GRK rugged structural screws(for static brackets)
Qty 8 - 5/16”x6” GRK rugged structural screws(for the end of the boards sitting on the static brackets)
Qty 2 - 1.25”x9”-C3 tabs and nuts
Qty 4 - LUS28-2Z Simpson Strongtie Joist Hangers
Qty 32 - #9 x 1-1/2" SD Connector Screws(for joist hangers)
Qty 24 - #9 x 2-1/2" SD Connector Screws(for joist hangers)
Qty 4 - 1.25” single knee braces with galvanized bolts, washers, lock washers, and nuts
Qty 4 - 1.25”x12” galvanized lag bolts
Save over $65 by purchasing it as a kit!
This 16ft Square treehouse kit is for building around a single tree.
Includes:
Qty 2 - 1.25” static brackets
Qty 8 - 3/8”x4” GRK rugged structural screw(for pipe brackets)
Qty 8 - 5/16”x6” GRK rugged structural screws(for the end of the boards sitting on the static brackets)
Qty 2 - 1.25”x9”-C3 TABs and nuts
Qty 4 - LUS210-2Z Simpson Strongtie Joist Hangers
Qty 32 - #9 x 1-1/2" SD Connector Screws(for joist hangers)
Qty 24 - #9 x 2-1/2" SD Connector Screws(for joist hangers)
Qty 8 - 1.25” single knee braces with galvanized bolts, washers, lock washers, and nuts
Qty 8 - 1.25”x12” galvanized lag bolts
Save over $60 when buying it as a kit!

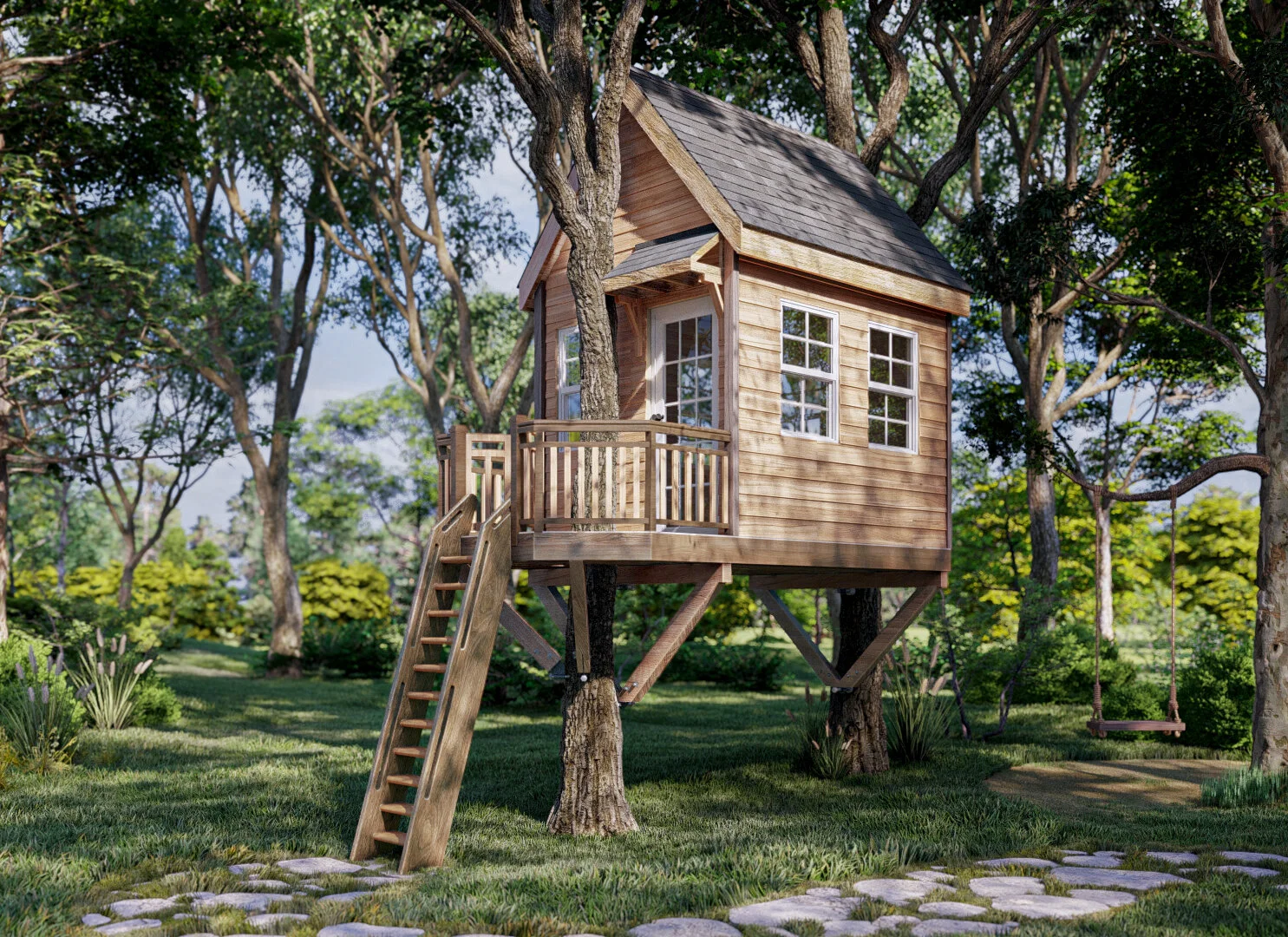

The 8x15ft treehouse kit includes all the brackets, TABs, and lag bolts you’ll need to build the 8x15 treehouse detailed in our plans. It uses two trees and since the distance is likely not the same as the plans you’ll need to modify dimensions to get the house to fit between the trees while leaving room for sway.
Qty 2 - 1.25” static bracket
Qty 8 - 3/8”x4” GRK rugged structural screw(for static brackets)
Qty 2 - Double Knee Brace with galvanized bolts, washers, lock washers, and nuts
Qty 2 - 1.25” single knee braces with galvanized bolts, washers, lock washers, and nuts
Qty 2 - 1.25”x12” galvanized lag bolts
Qty 4 - 1.25”x9”-C1 TABs and nuts
**Option available to upgrade to 1.25”x9”-C3 TABs to help with trees that may be leaning which puts the bottom of the tribeam further out on the perch.
The 12x15ft treehouse kit includes all the brackets, TABs, and lag bolts you’ll need to build the 12x15 treehouse detailed in our 12x15 house plan. It uses a single tree and two 6x6 posts anchored in concrete.
Qty 1 - 1.25” static brackets
Qty 2 - 1.25”x9”-C3 tabs and nuts
Qty 1 - Double Knee Brace
Qty 2 - 1.25”x12” galvanized lag bolts
Qty 2 - 1.25” single knee braces with galvanized bolts, washers, lock washers, and nuts
Qty 4 - 3/8”x4” GRK rugged structural screw(for static brackets)

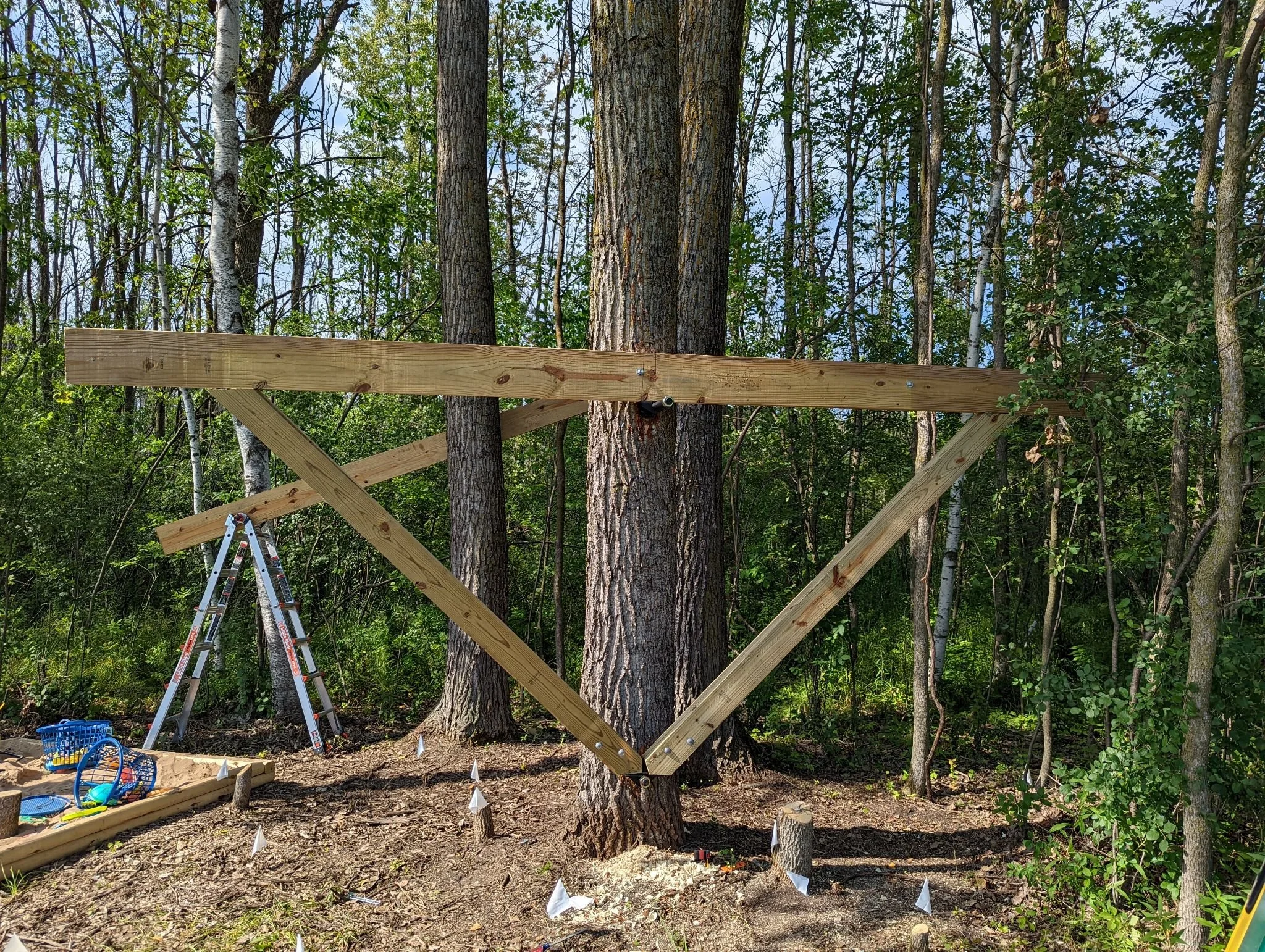

Qty 4 - 5/16”x6” GRK rugged structural screws(for tribeam construction)
Qty 4 - 5/16”x10” GRK rugged structural screws(for tribeam construction)
Save $30 by purchasing it as a kit!
This four tree platform kit is for houses or platforms up to 70 square feet. Conditions vary for each application from tree species/size, snow loads in your area, and house/platform size.
This kit includes:
Qty 1 - 1.25” pipe bracket
Qty 16 - 3/8x4 GRK Screws
Qty 4 - 1.25”x15” lag bolts
Qty 3 - 1.25” float brackets
Save $40 by purchasing it as a kit!
This four tree platform kit is for houses up to 120 square feet house or platforms up to 160 square feet. Conditions vary for each application from tree species/size, snow loads in your area, and house/platform size.
This kit includes:
Qty 1 - 1.25” pipe bracket
Qty 16 - 3/8x4 GRK Screws
Qty 4 - 1.25”x9”-C1 TABs and nuts
Qty 3 - 1.25” float brackets
Save $50 by purchasing it as a kit!
This four tree platform kit is for houses up to 250 square feet house or platforms. Conditions vary for each application from tree species/size, snow loads in your area, and house/platform size.
This kit includes:
Qty 1 - 1.25” pipe bracket
Qty 16 - 3/8x4 GRK Screws
Qty 4 - 1.25”x9”-C3 TABs and nuts
Qty 3 - 1.25” float brackets
Save $50 by purchasing it as a kit!
This four tree platform kit is for houses that are 250 square feet or larger. Conditions vary for each application from tree species/size, snow loads in your area, and house/platform size.
This kit includes:
Qty 1 - 1.25” pipe bracket
Qty 3 - 1.25” float brackets
Qty 16 - 3/8x4 GRK Screws
Qty 4 - 1.25”x12”-C6 TABs and nuts
The 12x12ft treehouse kit includes all the brackets, TABs, and lag bolts you’ll need to build a 12x12 treehouse between two trees. Basically it’s the brackets required to make two tri beams, one on each tree.
Qty 2 - 1.25” static brackets
Qty 2 - Double Knee Braces
Qty 4 - 1.25”x9”-C3 tabs and nuts
Qty 4 - 3/8”x4” GRK rugged structural screw(for static brackets)
Qty 4 - 5/16x6 GRK Screws(through stiff knee up into horizontal beam)
Qty 4 - 5/16x10 GRK Screws(through horizontal beam down into stiff knee)
Does not include wood.
This plan has 16 detailed sketches to help build a 8x15 platform and/or house between two trees. Plan includes templates to help cut the rafters, tribeam, and 4x6 stiff knees.
This plan has 16 detailed sketches to help build a 12x15 platform with a 12’x9’ house. It uses a single tree and two 6x6 posts concreted into the ground. Plan includes templates to help cut the rafters, tribeam, and 4x6 stiff knees.
This plan has 13 detailed sketches to help build a 8ft Octagon platform and/or house. It uses a single tree. Plan includes templates to help cut the rafters and 4x6 stiff knees. Also includes details on the ladder.
This plan has 13 detailed sketches to help build a 10ft Octagon platform and/or house. It uses a single tree. Plan includes templates to help cut the rafters and 4x6 stiff knees. Also includes details on the ladder.
This plan has 14 detailed sketches to help build a 12ft Octagon platform and/or house. It uses a single tree. Plan includes templates to help cut the rafters and 4x6 stiff knees. Also includes details on the ladder.

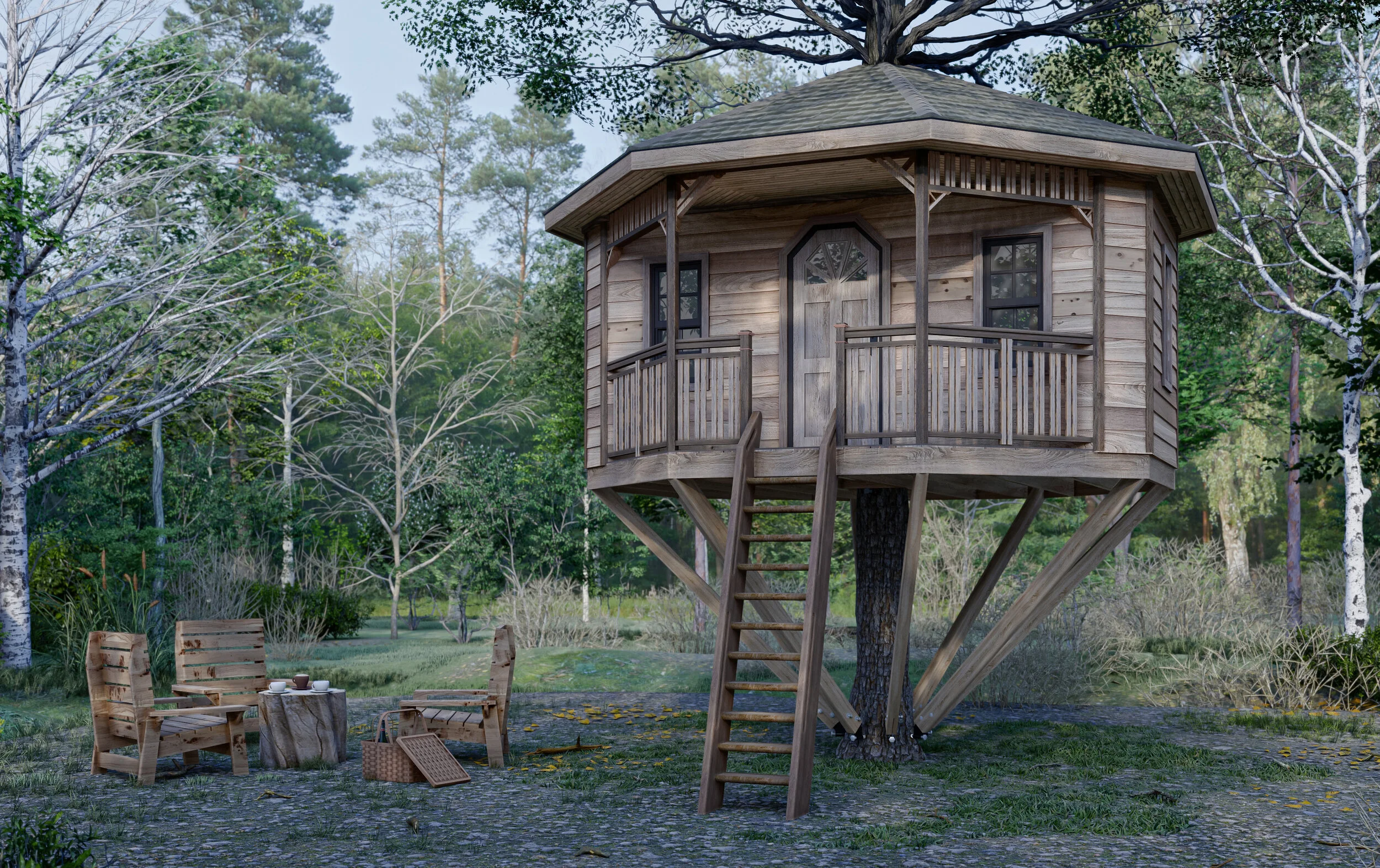

This plan has 13 detailed sketches to help build a 16ft Octagon platform and/or house. It uses a single tree. Plan includes templates to help cut the rafters and 4x6 stiff knees. Also includes details on the ladder.
This plan has 15 detailed sketches to help build a 8x8 platform and/or house. It uses a single tree. Plan includes templates to help cut the rafters and 4x6 stiff knees. Also includes details on the ladder.
This plan has 15 detailed sketches to help build a 10x10 platform and/or house. It uses a single tree. Plan includes templates to help cut the rafters and 4x6 stiff knees. Also includes details on the ladder.
This plan has 15 detailed sketches to help build a 12x12 platform and/or house. It uses a single tree. Plan includes templates to help cut the rafters and 4x6 stiff knees. Also includes details on the ladder.
This plan has 15 detailed sketches to help build a 16x16 platform and/or house. It uses a single tree. Plan includes templates to help cut the rafters and 4x6 stiff knees. Also includes details on the ladder.
This plan has 13 detailed sketches to help build a 8ft Hexagon platform and/or house. It uses a single tree. Plan includes templates to help cut the rafters and 4x6 stiff knees. Also includes details on the ladder.
This plan has 13 detailed sketches to help build a 10ft Hexagon platform and/or house. It uses a single tree. Plan includes templates to help cut the rafters and 4x6 stiff knees. Also includes details on the ladder.
This plan has 13 detailed sketches to help build a 12ft Hexagon platform and/or house. It uses a single tree. Plan includes templates to help cut the rafters and 4x6 stiff knees. Also includes details on the ladder.
1.25” x 6” perch treehouse attachment bolt with a 3” diameter x 1” length collar, 13” overall length. Made from very strong heat treated 4140 steel and powder coated with a nice textured black finish. Includes 1-1/4x12 zinc plated hex nut.
Don’t forget the drill bits required to install these! 1-1/8'“ ship auger for hardwood, 1” ship auger for softwoods, and a 3” forstner bit for the collar
Tip: Drill the 3” diameter hole first, make sure you’re drilling level. Next drill the 1” or 1-1/8” hole(depending on hard or softwood) 6 to 7” deeper than the back of the first hole. For this 1” long collared TAB you’ll need to install the collar 1” past the bark layer. You can find more detailed steps at our Treehouse 101 page.
Pipe Bracket not included
A 1.25” x 9” perch treehouse attachment bolt with a 3” diameter x 1” length collar, 16” overall length. Made from very strong heat treated 4140 steel and powder coated with a nice textured black finish. Includes 1-1/4x12 zinc plated hex nut.
Don’t forget the drill bits required to install these! 1-1/8'“ ship auger for hardwood, 1” ship auger for softwoods, and a 3” forstner bit for the collar
Tip: Drill the 3” diameter hole first, make sure you’re drilling level. Next drill the 1” or 1-1/8” hole(depending on hard or softwood) 6 to 7” deeper than the back of the first hole. For this 1” long collared TAB you’ll need to install the collar 1” past the bark layer. You can find more detailed steps at our Treehouse 101 page.
Pipe Brackets not included
A 1.25” x 9” perch treehouse attachment bolt with a 3” diameter x 3” length collar, 18” overall length. Made from very strong heat treated 4140 steel and powder coated with a nice textured black finish. Includes 1-1/4x12 zinc plated hex nut.
Don’t forget the drill bits required to install these! 1-1/8'“ ship auger for hardwood, 1” ship auger for softwoods, and a 3” forstner bit for the collar
Tip:Drill the 3” diameter hole first, make sure you’re drilling level. Next drill the 1” or 1-1/8” hole(depending on hard or softwood) 6 to 7” deeper than the back of the first hole. For this 3” long collared TAB you’ll need to install the collar 2” to 2.5” past the bark layer. You can find more detailed steps at our Treehouse 101 page.
A 1.25” diameter x 12” perch treehouse attachment bolt with a 3” diameter x 6” length collar. Made from very strong heat treated 4140 steel and powder coated with a nice textured black finish. Includes 1-1/4x12 zinc plated hex nut. At 24” overall length and 18 pounds this is the big daddy of our 1.25” diameter series.
Don’t forget the drill bits required to install these! 1-1/8'“ ship auger for hardwood, 1” ship auger for softwoods, and a 3” forstner bit for the collar
Tip:Drill the 3” diameter hole first, make sure you’re drilling level. Next drill the 1” or 1-1/8” hole(depending on hard or softwood) 6 to 7” deeper than the back of the first hole. For this 6” long collared TAB you’ll need to install the collar 4.5” to 5” past the bark layer. You can find more detailed steps at our Treehouse 101 page.
Still not large enough? Check out our PRO Series TABs here. They are 1.75” diameter monsters!
This hex nut fits all of our standard TABs with 1.25” diameter which is 97% of the TABs we sell. All of our kits use this hex nut. These do not fit our PRO series TABs(1.75” diameter).
1.25-12 Grade 8 Hex Nut
Requires 1-7/8” socket
Use this double knee brace to support two knee braces from a single TAB or 1.25" lag bolt or in the construction of a tri-beam using 4x6 treated lumber. Using only one tree attachment point reduces impact on the tree and decreases installation time.
1/4" steel plates
Bracket surrounds the mounting pipe which greatly increases bracket strength vs. industry standard
tough, corrosion resistant, textured powdercoat finish

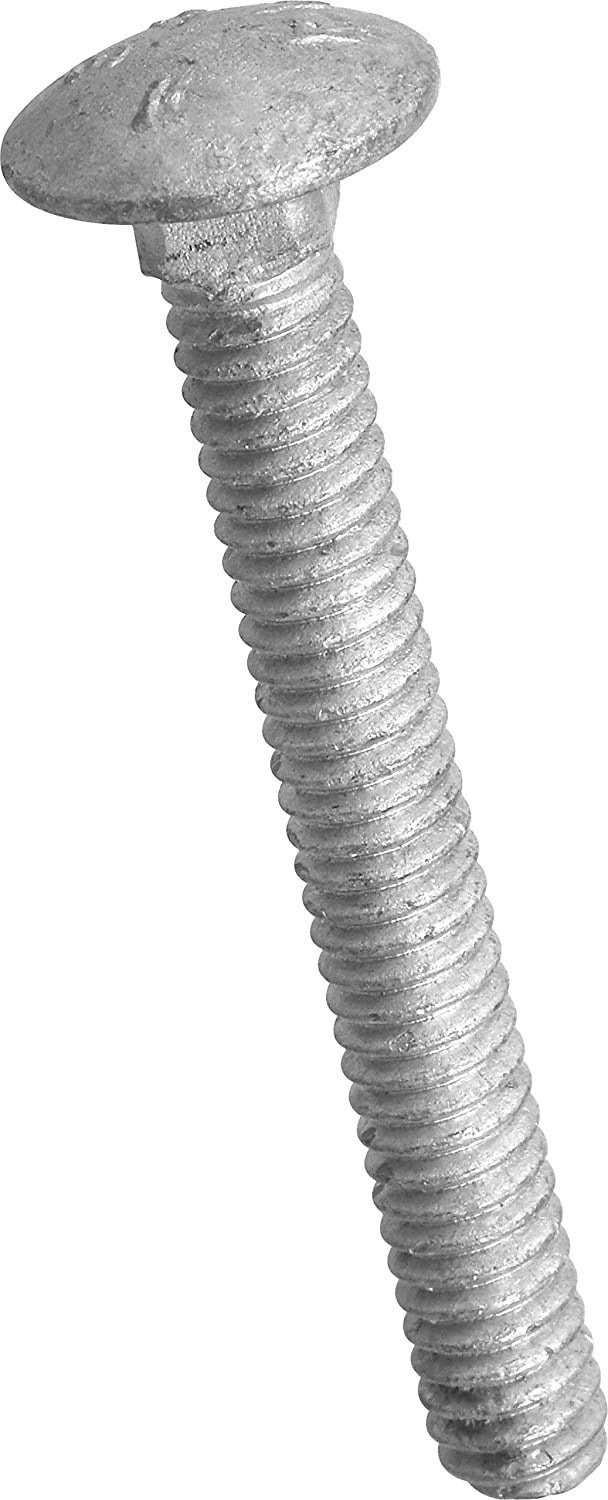

includes (4) 5/8"x5" hot dipped galvanized carriage bolts, washers, lock washers, and nuts
Does NOT include the TAB or 1.25" lag bolt
Now offering these brackets in 304 stainless steel. Great for coastal regions or when you just want it to last forever!
Use this single knee brace to support a knee brace from a single TAB or 1.25" lag bolt using 4x6 treated lumber. Be sure to select the correct size pipe for the attachment method you'll be using.
1.25" Pipe = TAB or 1.25" Lag bolt
1/4" steel plates or stainless steel - choose below
tough, corrosion resistant, textured powdercoat finish
includes (2) 5/8"x5" hot dipped galvanized carriage bolts, washers, lock washers, and nuts
Does NOT include the TAB or lag bolts
Now offering these brackets in 304 stainless steel. Great for coastal regions or when you just want it to last forever!
Use this static bracket to support a beam from a single TAB or lag bolt. For treehouses spanning across two trees a floating bracket should be used on one of the trees to allow them to move independently. This will reduce stress/damage to the trees and your treehouse.
1/4" formed steel plate or 304 stainless steel(choose below)
Fits 1.25” diameter lags or TABs(treehouse attachment bolts)
Bracket features a No Weld design
tough, corrosion resistant, textured powder coat finish
Does NOT include the TAB or lag bolt
Now offering these brackets in 304 stainless steel. Great for coastal regions or when you just want it to last forever!
Floating brackets are useful when building a treehouse spanning across two or more trees. Each tree needs to be able to move independently or structural damage could/will occur to your treehouse.
Made with 1/4” steel plate, 1/2” thick UHMW for the bearing surface, and a tough textured black powder coat finish.
Only for TABs with 9” perch or longer, or 1.25”x15” lag bolts. TAB/Bolt not included
Use this pipe suspension bracket to support a TAB or lag bolt from above with cables or chain.
1.25" Pipe = TAB or 1.25" Lag bolt
1/4" steel plate
tough, corrosion resistant, textured powdercoat finish
Does NOT include the TAB or lag bolt

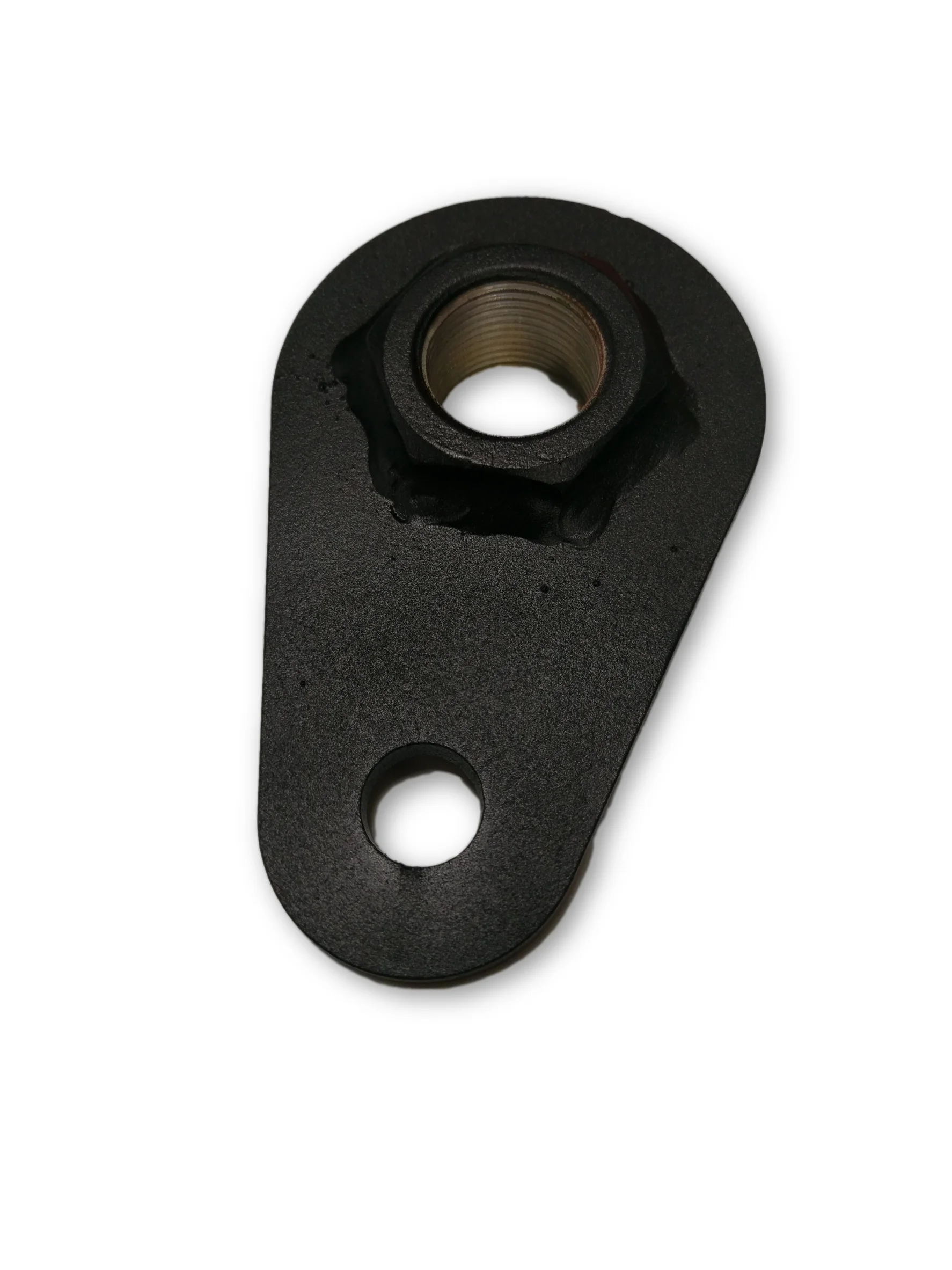

Use this bracket to support a 1.25” TAB from the end. Simply thread the 1.25”-7 nut onto the treehouse attachment bolt.
1/4" steel plate completely surrounds the nut
tough, corrosion resistant, textured powdercoat finish
Does NOT include the TAB
Use this 1/2” thick UHMW PE anywhere you don’t want metal contacting metal.
12” x 12” piece
Reprocessed black UHMW PE - uses recycled and virgin UHMW
Extremely impact resistant and wear resistant
Actual size will be about an 1/8” shorter than nominal size shown
A tribeam is used when you’re building on one tree and two posts, between two trees, or if you have 3 trees you can put a tribeam on one tree and span to the other two trees with beams.
This kit includes:
Qty 1 - Double Knee Brace w/ qty 4 - 5/8”x4.5” galvanized carriage bolts, washers, lock washers, & nuts.
Qty 1 - Static Bracket
Qty 2 - Lags - Choose size in drop down menu below.
Qty 4 - 3/8x4 GRK Screws(for static Bracket)
Qty 4 - 5/16x6 GRK Screws(through stiff knee up into horizontal beam)
Qty 4 - 5/16x10 GRK Screws(through horizontal beam down into stiff knee)
A tribeam is used when you’re building on one tree and two posts, between two trees, or if you have 3 trees you can put a tribeam on one tree and span to the other two trees with beams resting on the tribeam.
This will support half of a 120 square foot treehouse or smaller. Note: if you’re in a heavy snow load area and close to 120 square feet we recommend going up to the next size tribeam kit
This kit includes:
Qty 1 - Double Knee Brace w/ qty 4 - 5/8”x4.5” galvanized carriage bolts, washers, lock washers, & nuts.
Qty 1 - Static Bracket
Qty 2 - 1.25x9-C1 TABs
Qty 4 - 3/8x4 GRK Screws(for static Bracket)
Qty 4 - 5/16x6 GRK Screws(through stiff knee up into horizontal beam)
Qty 4 - 5/16x10 GRK Screws(through horizontal beam down into stiff knee)
Does not include wood.
A tribeam is used when you’re building on one tree and two posts, a treehouse between two trees. Or if you have 3 trees you can put a tribeam on one tree and span to the other two trees with beams resting on the tribeam(you would then run you joists perpendicular across the two main beams)
This will support half of a 200-250 square foot treehouse or smaller. Note: if you’re in a heavy snow load area and close to that range we recommend going up to the large TABs tribeam kit.
Also note: when you get to this size special consideration needs to be taken into the size of the lumber used for the tribeam.
This kit includes:
Qty 1 - Double Knee Brace w/ qty 4 - 5/8”x4.5” galvanized carriage bolts, washers, lock washers, & nuts.
Qty 1 - Static Bracket
Qty 2 - 1.25x9-C3 TABs
Qty 4 - 3/8x4 GRK Screws(for static Bracket)
Qty 4 - 5/16x6 GRK Screws(through stiff knee up into horizontal beam)
Qty 4 - 5/16x10 GRK Screws(through horizontal beam down into stiff knee)
Does not include wood.
A tribeam is used when you’re building on one tree and two posts, a treehouse between two trees. Or if you have 3 trees you can put a tribeam on one tree and span to the other two trees with beams resting on the tribeam(you would then run you joists perpendicular across the two main beams)
This will support half of a 250+ square foot treehouse. Note: if you’re in a heavy snow load area and close to that range we recommend contacting us to discuss if you need to step up to the Pro Series TABs we offer(huge 1.75” diameter TABs)
Also note: when you get to this size special consideration needs to be taken into the size & materials used for the tribeam among other things.
This kit includes:
Qty 1 - Double Knee Brace w/ qty 4 - 5/8”x4.5” galvanized carriage bolts, washers, lock washers, & nuts.
Qty 1 - Static Bracket
Qty 2 - 1.25x12-C6 TABs
Qty 4 - 3/8x4 GRK Screws(for static Bracket)
Does not include wood.
Choose between 1” diameter or 1.25” diameter lag bolts
12” OR 15” length
hot dipped galvanized
5-6” of coarse thread
1.25x15” = 1-7/8” Socket
1.25x12” = 1-7/8” Socket
1”x12” = 1-1/2” Socket
Better pictures coming soon.
This is the biggest TAB we offer, an absolute monster.
1.75” diameter x 12” perch treehouse attachment bolt with a 3” diameter x 6” length collar. Made from very strong, heat treated 4140 steel and powder coated with a nice textured black finish. Includes 1-3/4-12 structural hex nut. At 24” overall length and 22 pounds this is the TAB you need for big treehouses.
Not sure if you need one this large? Reach out to us and we’ll help you pick out the hardware and brackets required.
This float bracket will ONLY fit our Pro Series TABs which have a shaft diameter of 1.75”. Includes quantity 2 - 3/4”x5” lag screws
Made from 1/2” steel plate with a 3/8” steel strap, 1/2” UHMW, and 2” square tubing to go over the TAB to help distribute the load into the UHMW. Finished with a nice, textured black powder coat.
This static bracket will ONLY fit our Pro Series TABs which have a shaft diameter of 1.75”. Includes quantity 2 - 3/4”x5” lag screws
Made from 1/2” steel plate these are brackets are extremely beefy. Finished with a nice, textured black powder coat.
Ship auger and forstner bit rental for installing lags and TABs.
Return back to us for a refund as shown below:
Within 4 weeks - 70% refunded
Within 6 weeks - 60% refunded
Within 8 weeks - 50% refunded
After 8 weeks a refund will not be offered.
Included in the 1" Lags, 1.25" Lags & TABs kit:
3/4” ship auger
7/8” ship auger
1” ship auger
1-1/8” ship auger
3” forstner bit
Included in the 1” lag bolt:
3/4” ship auger
7/8” ship auger
Purchase these ship augers outright for installing lags and TABs.
Included in the 1" Lags, 1.25" Lags & TABs kit:
3/4” ship auger(for softwoods when using 1” lags)
7/8” ship auger(for hardwoods when using 1” lags)
1” ship auger(for softwoods when using 1.25” Lags or TABs)
1-1/8” ship auger(for hardwoods when using 1.25” Lags or TABs)
3” forstner bit(for creating the collar hole when using TABs)
Included in the 1.25” lag and TABs kit:
1” ship auger(for softwoods when using 1.25” Lags or TABs)
1-1/8” ship auger(for hardwoods when using 1.25” Lags or TABs)
3” forstner bit(for creating the collar hole when using TABs)
Included in the 1” lag bolt kit:
3/4” ship auger(for softwoods when using 1” lags)
7/8” ship auger(for hardwoods when using 1” lags)
Single Bits:
3/4” ship auger
7/8” ship auger
1” ship auger
1-1/8” ship auger
1-5/8” ship auger(for our PRO series TABS)
3” Self Feeding Bit
These are the same galvanized hardware components that are already included when you buy a single or double knee brace.
These are heavy duty rugged structural screws with A T40 Torx head. Choose the size you want in the dropdown menu.
3/8”x4” are great for pipe brackets and floating brackets
3/8” x 6” for going up through the bottom of 4×6 stiff knees or tribeams into a beam/platform above
3/8” × 10” for going down through a 4×6 tribeam into the stiff knees.
Priced each

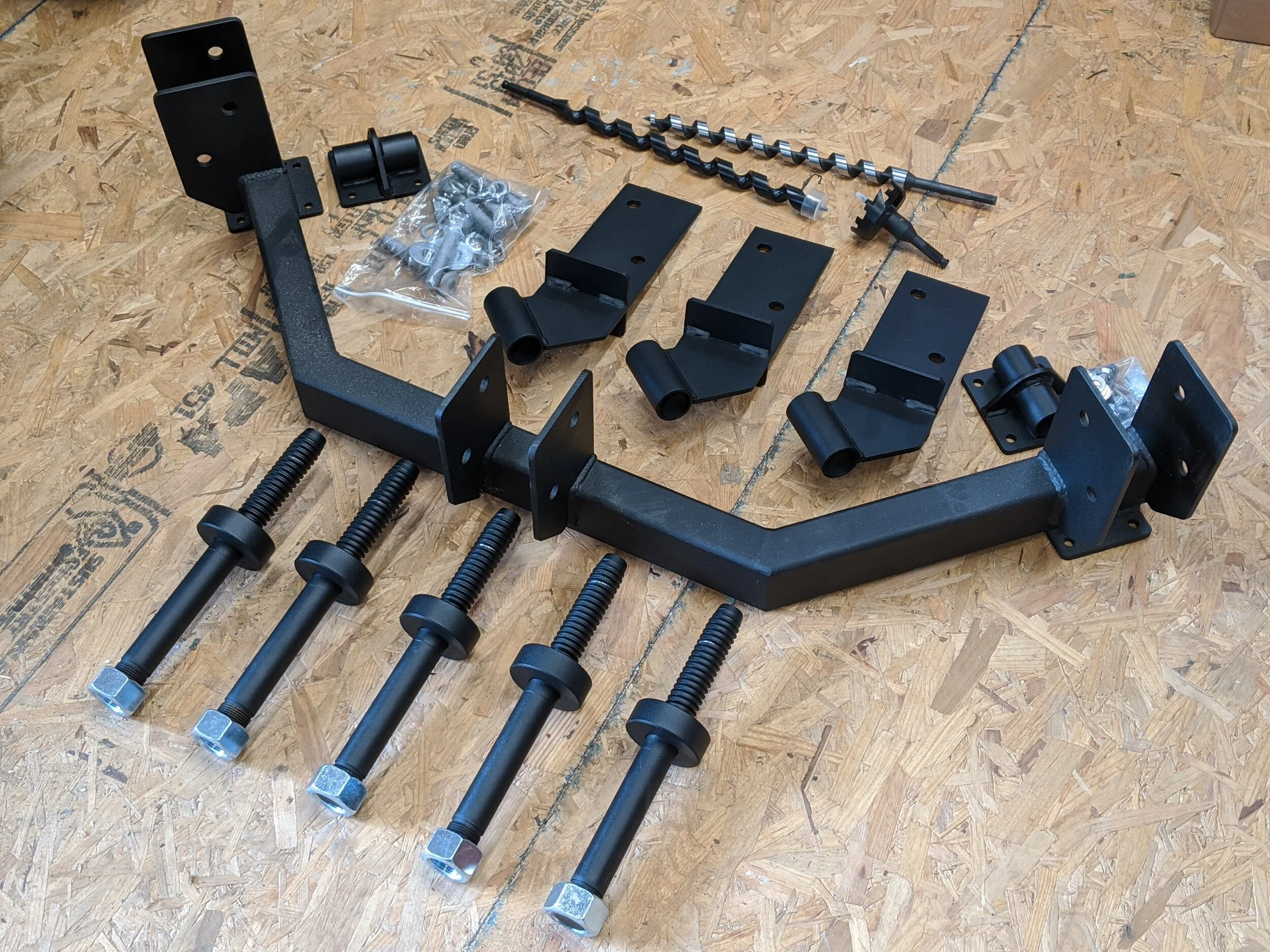

Need a certain style of bracket you can’t find anywhere on the internet? Contact us to get a quote and we’ll be happy to work with you!
Please reach out before ordering so we can provide you with a quote.
Purchasing this digital gift card creates a unique code. The gift card recipient can enter this code at checkout to subtract the gift card value from their order total.
This gift card never expires.
Save by purchasing it as a kit!
The 8ft Hexagon treehouse kit includes:
Qty 2 - 1.25” static brackets
Qty 8 - 3/8”x4” GRK rugged structural screws(for static brackets)
Qty 8 - 5/16”x6” GRK rugged structural screws(for the end of the boards sitting on the static brackets)
Qty 4 - LUS26-2Z Simpson Strongite Joist Hangers
Qty 16 - #9 x 1-1/2" SD Connector Screws
Qty 16 - #9 x 2-1/2" SD Connector Screws
Qty 2 - 1.25”x15” lag bolts
Qty 4 - 1.25” single knee braces with galvanized bolts, washers, lock washers, and nuts
Qty 4 - 1.25”x12” galvanized lag bolts
